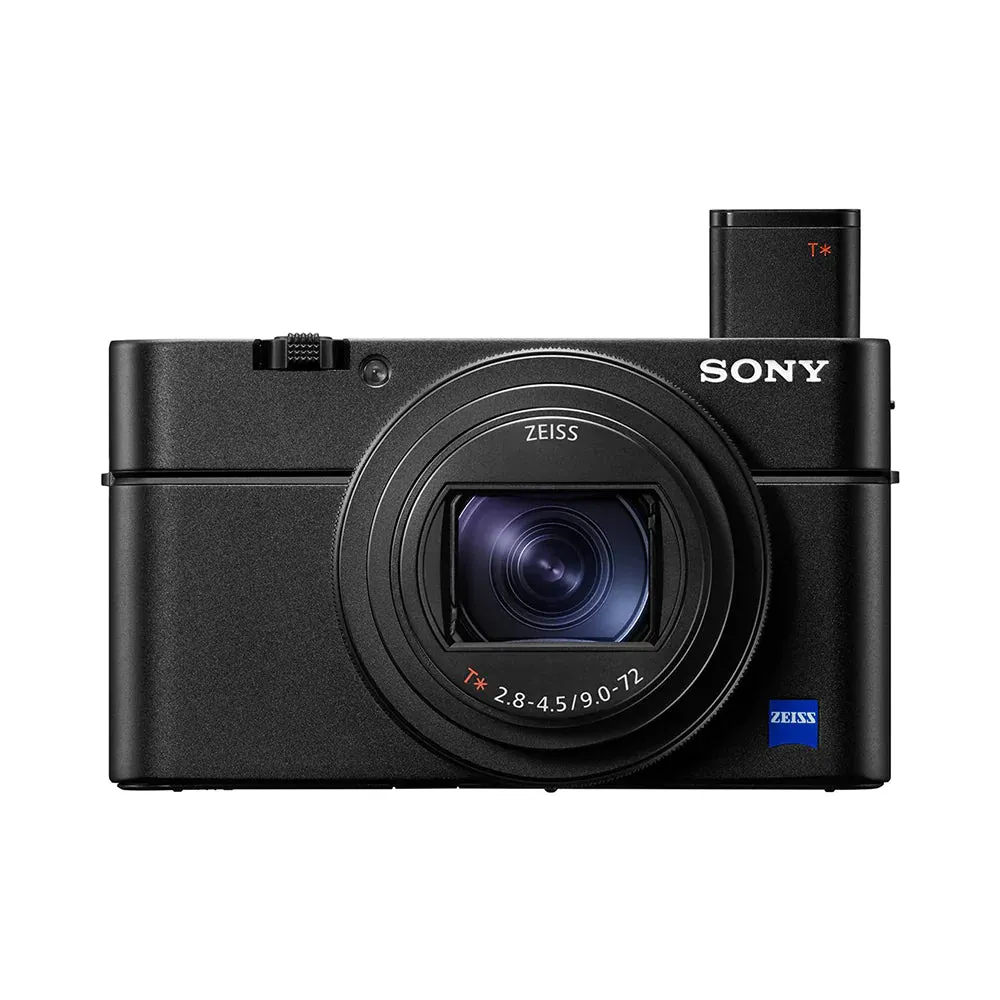

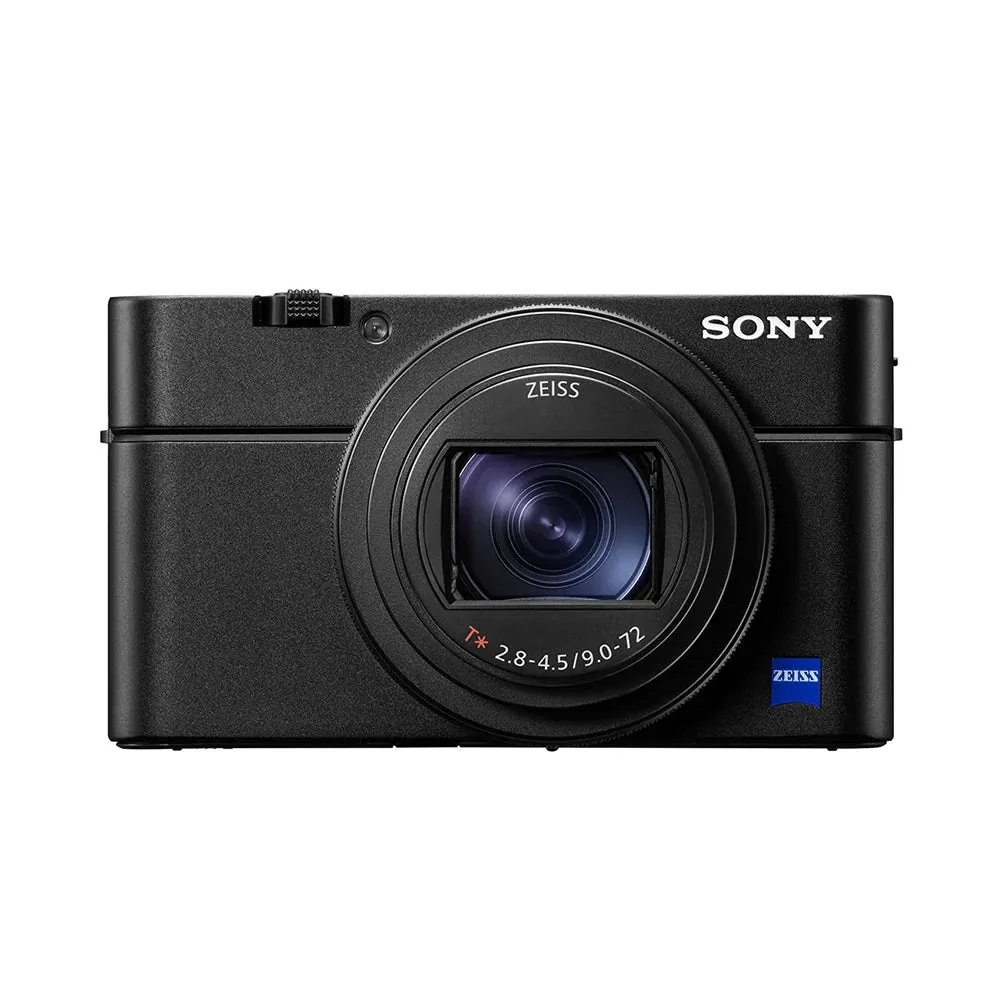

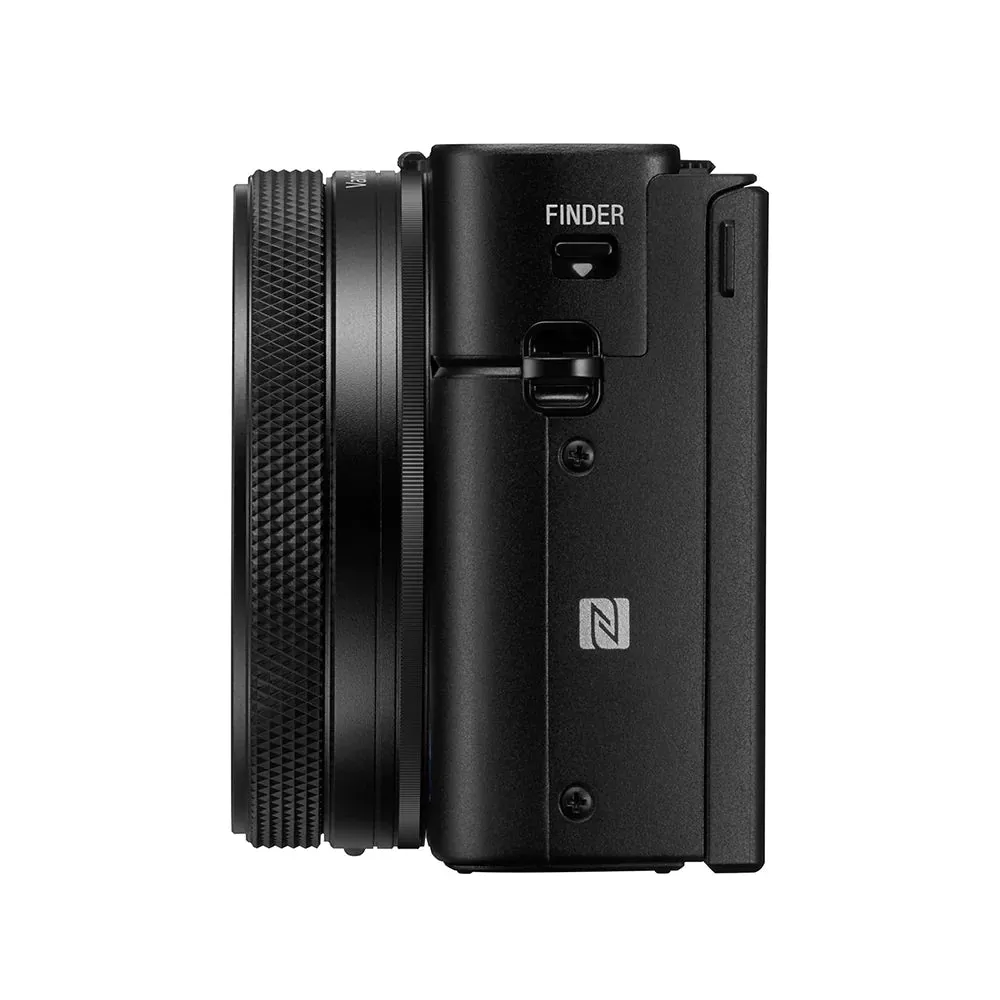

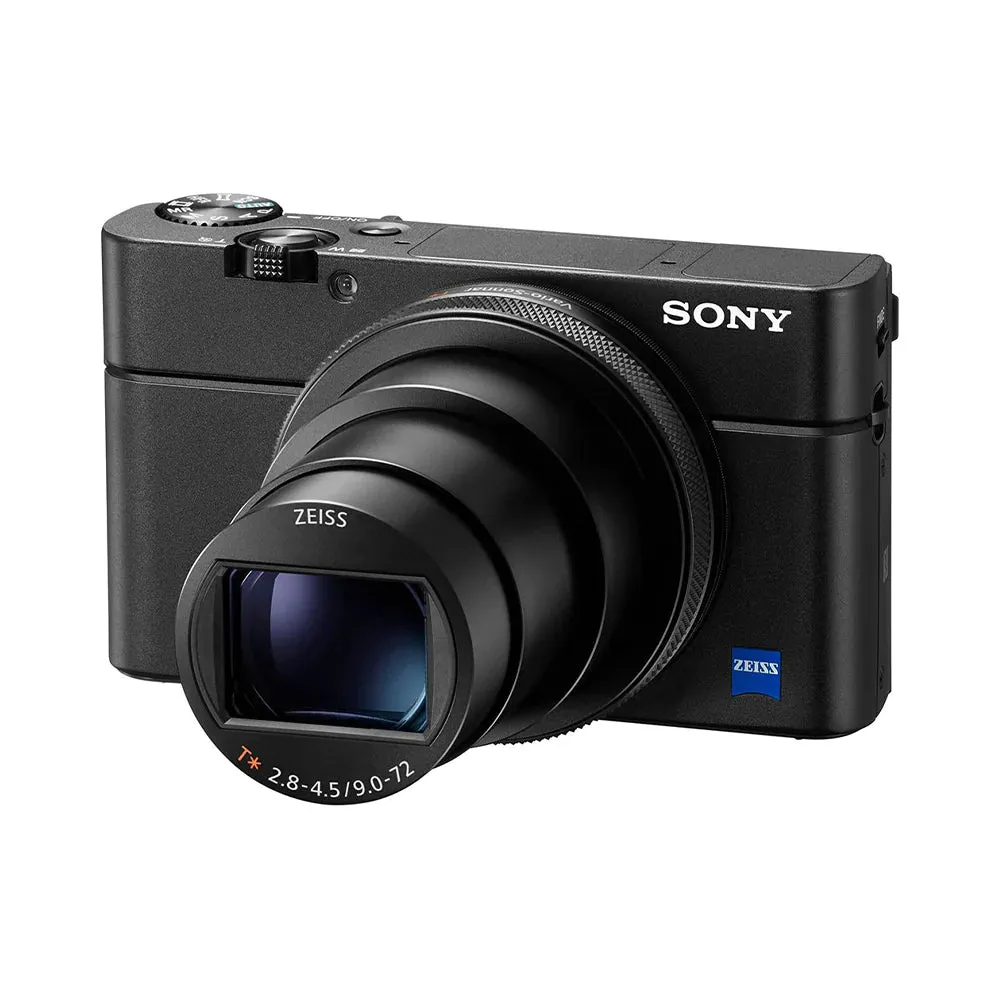

Product Description:

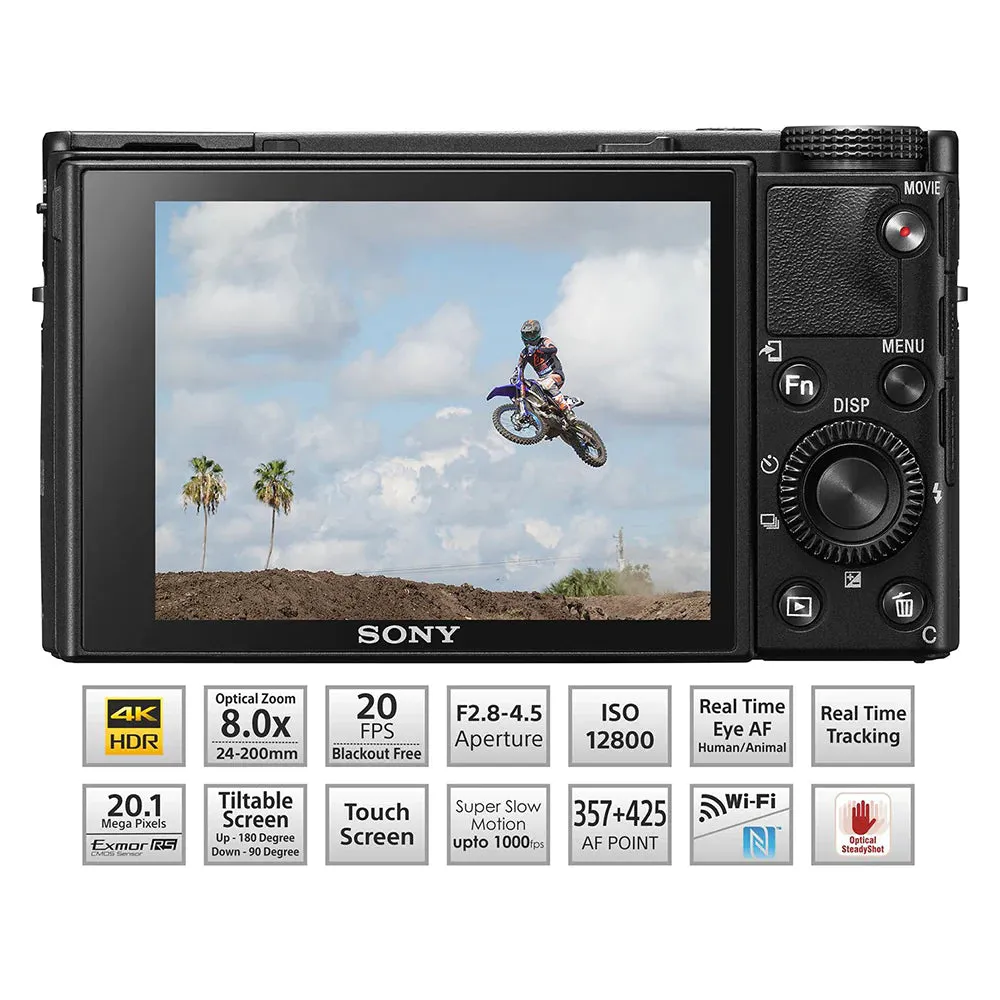

The RX100 VII adds powerful new focusing and burst shooting capabilities to the wide zoom range and exceptional image quality of the RX100 series. A new mic input, 4K HDR (HLG) video1314 and tilting touchscreen make it an equally great choice for video work and vlogging.
- Outstanding speed performance by newly developed image sensor
- Newly developed 1.0-type stacked CMOS image sensor with DRAM chip and BIONZ X
- 60 AF/AE calculations per second, Continuous shooting at up to 20 fps
- Silent shooting and anti-distortion shutter
- Real time tracking, real timeEye AF and animal eye AF
- Touch Tracking,touch focus and touch shutter
- High-magnification zoom and high image quality condensed into a compact body
- High-image-quality 4K movie recording
- Advances in image stabilisation performance for movies
Technical Specifications:
Sensor
Sensor type | 1.0-type (13.2 mm x 8.8 mm) Exmor® RS CMOS sensor, aspect ratio 3:2 |
Number of Pixels (Effective) | Approx. 20.1 MP |
Lens

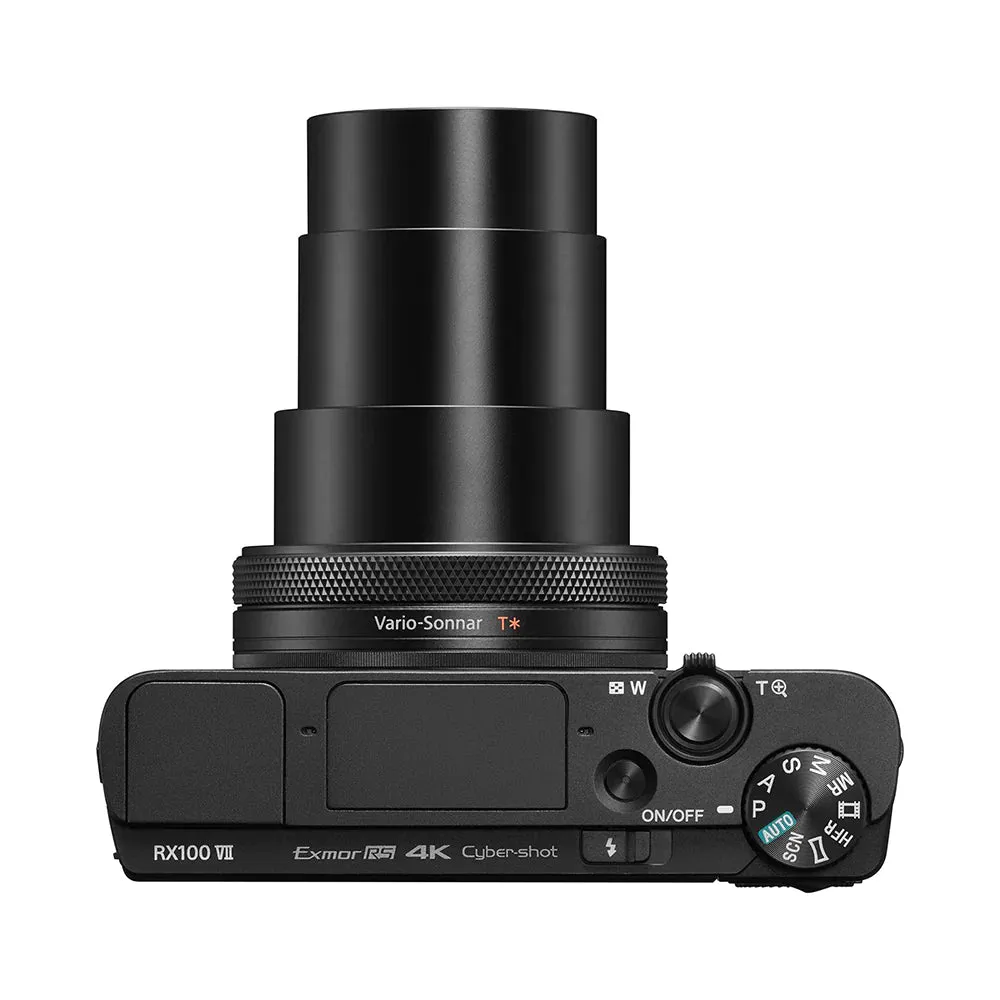

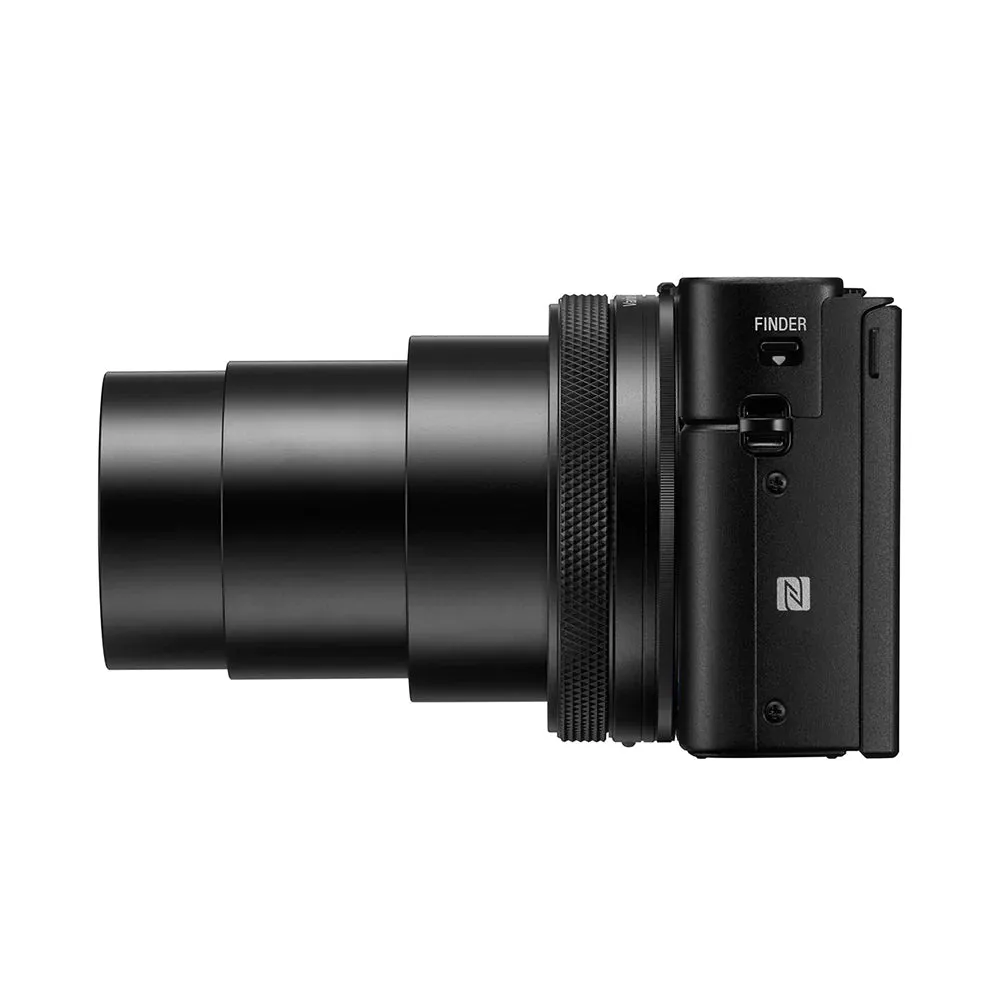

Lens type | ZEISS Vario-Sonnar T* Lens, 15 elements in 12 groups (eight aspheric elements including AA lens) |
F-number (Maximum Aperture) | F2.8(W)-4.5(T) |
ND-filter | - |
Focal length | f = 9.0-72 mm |
ANGLE OF VIEW (35 MM FORMAT EQUIVALENT) | 84 deg–12 deg 30 min (24–200 mm) |
Focus Range (From the Front of the Lens) | AF (W: Approx. 8 cm (0.27 ft.) to Infinity, T: Approx. 100 cm (3.29 ft.) to Infinity) |
Optical zoom | 8.0x |
Clear Image Zoom (Still Image) | 20 M Approx. 16x/10 M Approx. 22x/5.0 M Approx. 32x/VGA Approx. 121x |
Clear Image Zoom (Movie) | 4K: Approx. 12x / HD: Approx. 16x |
Digital Zoom (Still Image) | 20 M Approx. 32x/10 M Approx. 44x/5.0 M Approx. 64x/VGA Approx. 121x |
Digital Zoom (Movie) | Approx. 32x |
LCD

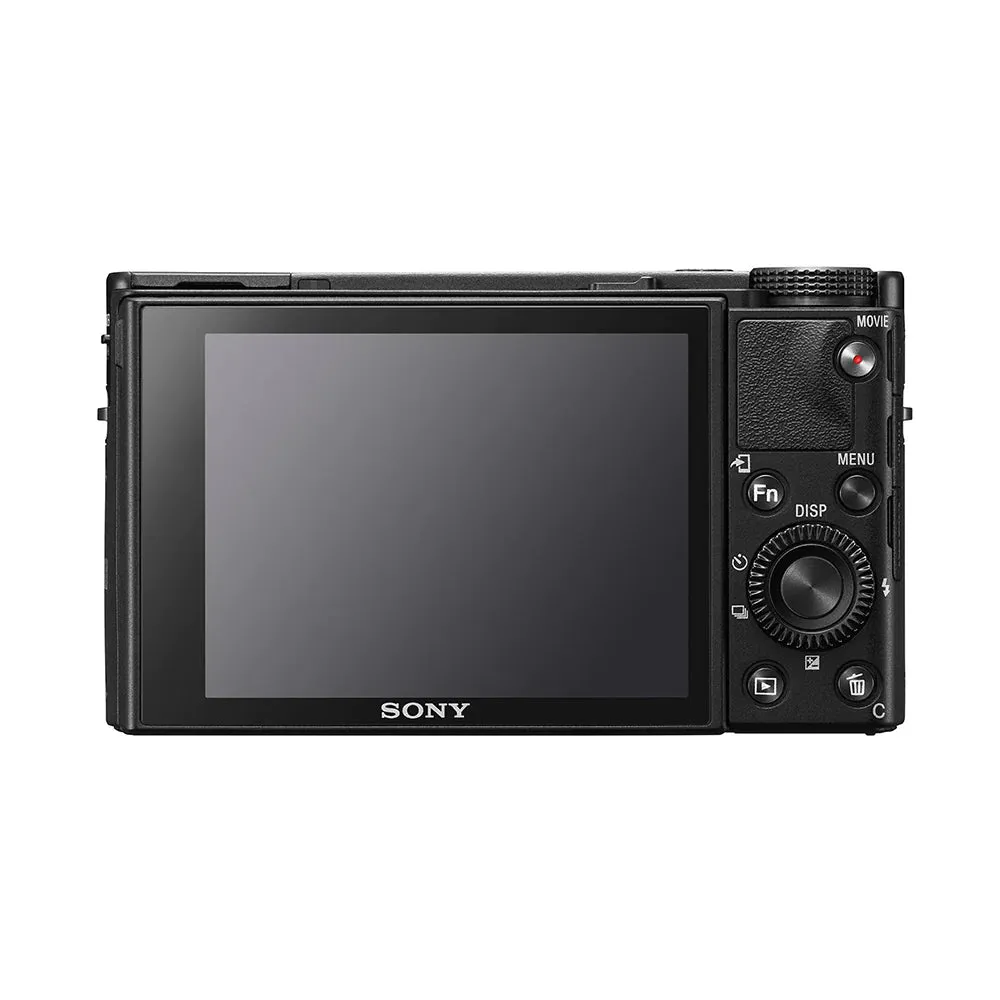

Screen type | 7.5 cm (3.0 type) (4:3) / 921,600 dots / Xtra Fine / TFT LCD |

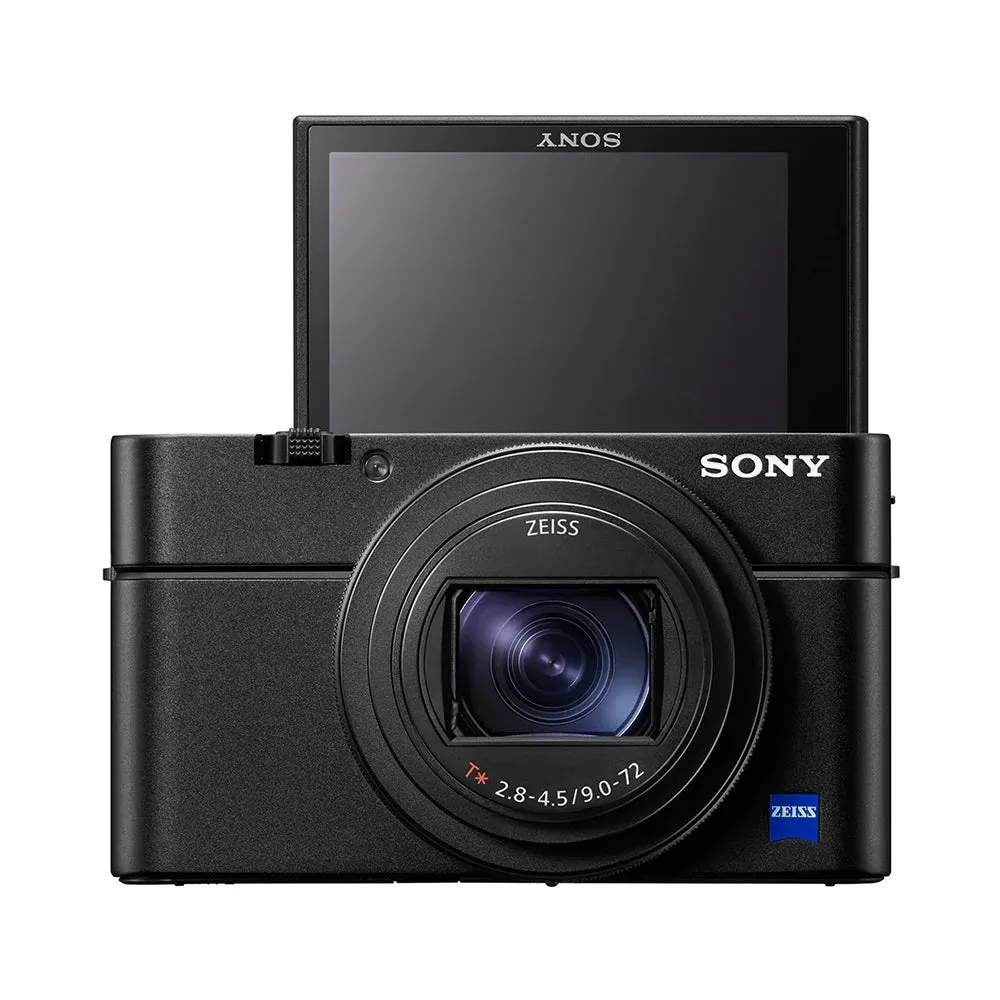

Adjustable Angle | Up by approx. 180 degrees, down by approx. 90 degrees |
Display Selector (Finder/Lcd) | Auto/EVF (Manual)/Monitor (Manual) |
MF Assist Magnification | 5.3x, 10.7x |
Touch Panel | Yes |
Viewfinder

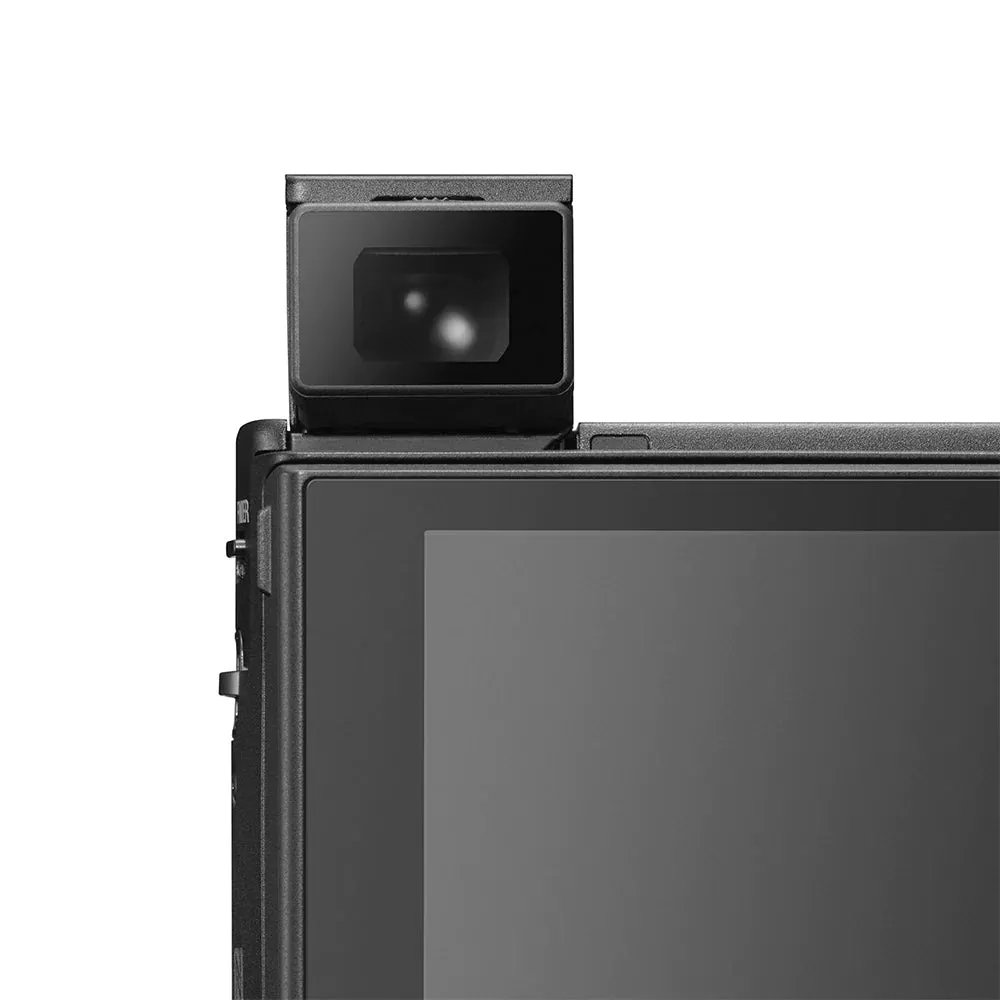

Viewfinder Screen Type/Number of Dots | 0.39-type electronic viewfinder (OLED), 2,359,296 dots |
Field Coverage | 100% |
Magnification | Approx. 0.59x with 50 mm lens at infinity, -1m-1(diopter) (35 mm equiv.) |
Eye Point | Approx. 20 mm from the eyepiece, 19.8 mm from the eyepiece frame at -1 m-1(diopter) (CIPA standard) |
Dioptre Adjustment | -4.0 to 3.0 m-1 |
Brightness Control | Auto, Manual (5 steps) |
Camera
Image Processing Engine | Yes (BIONZ X®) |
STEADYSHOT (STILL IMAGE) | Optical |
STEADYSHOT (MOVIE) | Yes (Intelligent Active Mode, Optical type with electronic compensation, Anti Rolling type) |
Focus Type | Fast Hybrid AF(phase-detection AF/contrast-detection AF) |
Focus Mode | Single-shot AF, Automatic AF, Continuous AF, DMF, Manual Focus |
Focus Area | Wide (357 points (phase-detection AF), 425 points (contrast-detection AF)), Zone, Centre, Flexible Spot (S/M/L), Expanded Flexible Spot, Tracking (Wide/Zone/Centre/Flexible Spot (S/M/L)/Expanded Flexible Spot) |
OBJECT TRACKING | Yes (Tracking) |
EYE AF | [Still images] Human (Right/Left Eye Select) / Animal; [Movie] Human (Right/Left Eye Select) |
Light Metering Mode | Multi Pattern, Center Weighted, Spot, Entire Screen Avg, Highlight |
Exposure Compensation | /- 3.0 EV, 1/3 EV step |
ISO Sensitivity (Still Image)(Recommended Exposure Index) | Auto (ISO100–12,800, selectable with upper/lower limit), 100/125/160/200/250/320/400/500/640/800/1,000/1,250/1,600/2,000/2,500/3,200/4,000/5,000/6,400/8,000/10,000/12,800 (Extendable to ISO64/80), Multi-Frame NR: Auto (ISO100–12,800), 100/200/400/800/1,600/3,200/6,400/12,800/25,600 |
ISO Sensitivity (Movie) | Auto: (ISO100–ISO12800 Level, selectable with upper/lower limit), 100/125/160/200/250/320/400/500/640/800/1000/1250/1600/2000/2500/3200/4000/5000/6400/8000/10000/12800 |
White Balance Modes | Auto, Daylight, Shade, Cloudy, Incandescent, Fluor.: Warm White, Fluor.: Cool White, Fluor.: Day White, Fluor.: Daylight, Flash, Underwater Auto, C.Temp./Filter, Custom |
WB Micro Adjustment | Yes (G7 to M7, 57-step) (A7 to B7, 29-step) |
Shutter Speed | iAuto (10.2 cm [4] - 1/2000)/Programme Auto (76.2 cm [30] - 1/2000)/Manual (Bulb, 76.2 cm [30] - 1/2000)/Aperture Priority (76.2 cm [30] - 1/2000)/Shutter Priority (76.2 cm [30] - 1/2000) |
Electronic Shutter | [Single Shooting] iAuto (4–1/32,000 s) / Program Auto (30–1/32,000 s) / Manual (30–1/32,000 s) / Aperture Priority (30–1/32,000 s) / Shutter Priority (30–1/32,000 s); [Continuous Shooting/Single Burst Shooting] 1/8–1/32,000 |
Aperture | iAuto (F2.8/F11 [W])/Program Auto (F2.8/F11 [W])/Manual (F2.8/F11 [W])/Shutter Priority (F2.8/F11 [W])/Aperture Priority (F2.8/F11 [W]) |
Image Control | Contrast, Saturation, Sharpness, Creative Style, Colour Space (sRGB/Adobe RGB), Quality (RAW/RAW and JPEG (Extra-fine, Fine, Standard)/JPEG (Extra-fine, Fine, Standard) |
Noise Reduction | Long exposure NR: On/Off, available of shutter speeds longer than 1/3 sec., high ISO NR: Normal/Low/Off, Multi Frame NR: Auto, ISO100-25600 |
Dynamic Range Functions | Off, Dynamic Range Optimiser (Auto/Level 1–5), Auto High Dynamic Range (Auto Exposure Difference, Exposure Difference Level (1.0–6.0 EV, 1.0 EV step) |
Shooting Mode | AUTO (Intelligent Auto/Superior Auto), Program Auto, Aperture Priority, Shutter Speed Priority, Manual Exposure, MR (Memory Recall) [body 3 sets/memory card 4 sets], Movie Mode (Program Auto, Aperture Priority, Shutter Speed Priority, Manual Exposure), HFR Mode (Program Auto, Aperture Priority, Shutter Speed Priority, Manual Exposure), Panorama, Scene Selection |
Scene Selection | Portrait, Sports Action, Macro, Landscape, Sunset, Night Scene, Handheld Twilight, Night Portrait, Anti Motion Blur, Pet Mode, Gourmet, Fireworks, High Sensitivity |
Continuous Shooting Speed (maximum) (with max. recording pixels) | [AUTO/Electronic Shutter] Continuous Shooting Hi: approx. 20fps, Continuous Shooting Mid: approx. 10fps, Continuous Shooting Low: approx. 5.0fps, Single Burst Shooting Hi: approx. 90fps, Single Burst Shooting Mid: approx. 60fps, Single Burst Shooting Low: approx. 30fps [Mechanical Shutter] Continuous Shooting Hi: -, Continuous Shooting Mid: approx. 10fps, Continuous Shooting Low: approx. 3.0fps |
Self-Timer | 10 s / 5 s / 2 s / 3 or 5 consecutive shots with 10 s, 5 s or 2 s delay selectable / Bracketing shots with 10 s, 5 s or 2 s delay selectable / Single Burst shots with 10 s, 5 s or 2 s delay selectable |
Drive Modes | Single, Continuous shooting, Single Burst Shooting, Self-timer, Self-timer (cont.), Cont. bracketing, Single bracketing, White balance bracketing, DRO bracketing |
INTERVAL REC | Yes (1–60 second interval, 1–9,999 shots, AE lock/AE tracking (High/Mid/Low)) |
Panorama (Shooting) | Sweep Panorama |
Picture Effect | [Still Image]: Toy camera, Pop Colour, Posterisation, Retro Photo, Soft High-key, Partial Colour, High Contrast Mono, Soft Focus, HDR Painting, Richtone Monochrome, Miniature, Watercolour, Illustration, [Movie]: Toy camera, Pop Colour, Posterisation, Retro Photo, Soft High-key, Partial Colour, High Contrast Mono |
Creative Style | Standard, Vivid, Neutral, Clear, Deep, Light, Portrait, Landscape, Sunset, Night Scene, Autumn Leaves, Black & White, Sepia, Style Box |
Picture Profile | off/PP1-PP10 (Black Level, Gamma (Movie, Still, Cine1-2, ITU709, ITU709 [800%], S-Log2, S-log3, HLG, HLG1, HLG2, HLG3), Black Gamma, Knee, Colour Mode, Saturation, Colour Phase, Colour Depth, Detail, Copy, Reset) |
Number of Recognised Scenes | [Still Image]: Superior Auto: 44 / iAuto: 33, [Movie]: 44 |
Flash
Flash Mode | Auto / Flash On / Slow Synchro / Rear Sync / Flash Off |

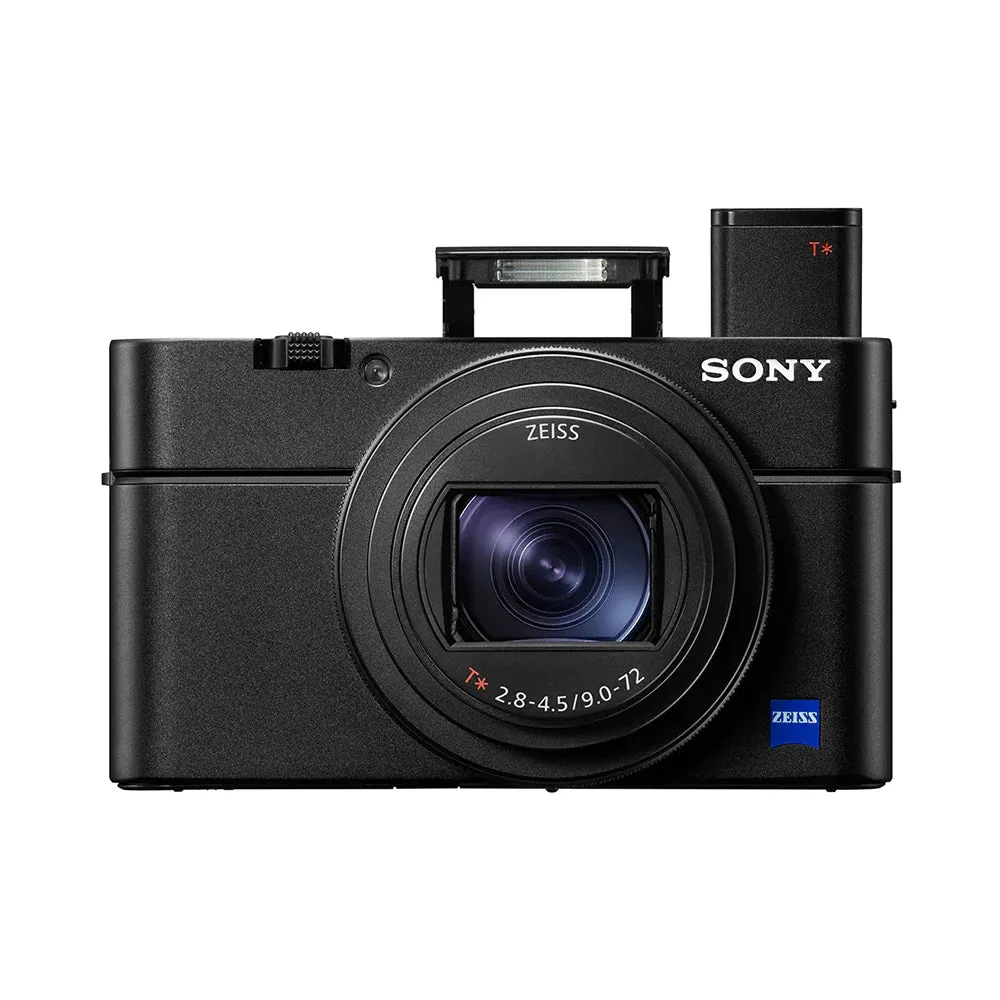

Flash type | Built-in, manual pop-up |
AF Illuminator | Auto/Off |
Bracketing | Yes |
Flash Range | ISO Auto: Approx.0.4 m to 5.9 m (1.31 ft) to 19.35 ft) (W)/Approx. 1.0 m to 3.1 m (3.28 ft to 10.17 ft) (T), ISO12800: up to Approx. 12.4 m (40.68 ft) (W)/Approx. 7.0 m (22.96 ft) (T) |
Recording
Compatible Recording Media | [XAVC S (100 Mbps)] SDXC/SDHC Memory Card (UHS-I U3 or higher); [XAVC S (60 Mbps/50 Mbps)] SDXC/SDHC Memory Card (Class 10 or higher); [AVCHD/Still image] Memory Stick Duo, Memory Stick PRO Duo, Memory Stick PRO-HG Duo, Memory Stick Micro, Memory Stick Micro (Mark2), SDXC/SDHC/SD Memory Card (Class 4 or higher), micro SDXC/SDHC/SD Memory Card (Class 4 or higher) |
Recording Format | [Still Image]: JPEG (DCF Ver. 2.0, Exif Ver. 2.31, MPF Baseline compliant), RAW (Sony ARW 2.3 format), [Movie]: XAVC S, AVCHD format Ver. 2.0 compatible |
Recording Format (Movie Audio) | XAVC S:LPCM 2ch, AVCHD:Dolby Digital(AC-3) 2ch (Dolby Digital Stereo Creator) |
Colour Space (Still) | sRGB, Adobe® RGB |
DCF/DPOF | DCF/DPOF/EXIF/MPF |
Still Image Number of recorded pixels (Image Size) | 3:2 mode: 20 M (5,472 x 3,648)/10 M (3,888 x 2,592)/5 M (2,736 x 1,824), 4:3 mode: 18 M (4,864 x 3,648)/10 M (3,648 x 2,736)/5 M (2,592 x 1,944)/VGA, 16:9 mode: 17 M (5,472 x 3,080)/7.5 M (3,648 x 2,056)/4.2 M (2,720 x 1,528), 1:1 mode: 13 M (3,648 x 3,648)/6.5 M (2,544 x 2,544)/3.7 M (1,920 x 1,920), Sweep Panorama: Wide (12,416 x 1,856/5,536 x 2,160), Standard (8,192 x 1,856/3,872 x 2,160) |
Movie Recording Mode (NTSC) | NTSC/PAL Selector: [NTSC] AVCHD: 24 M FX (1,920x1,080/60i)/17 M FH (1,920x1,080/60i), XAVC S 4K: 30p 100 M (3,840x2,160/30p)/30p 60 M (3,840x2,160/30p)/24p 100 M (3,840x2,160/24p)/24p 60 M (3,840x2,160/24p), XAVC S HD: 60p 50 M (1,920x1,080/60p)/60p 25 M (1,920x1,080/60p)/30p 50 M (1,920x1,080/30p)/30p 16 M (1,920x1,080/30p)/24p 50 M (1,920x1,080/24p)/120p 100 M (1,920x1,080/120p)/120p 60 M (1,920x1,080/120p) |
Movie Recording Mode | NTSC/PAL Selector: [PAL] mode AVCHD: 24 M FX (1,920 x 1,080/50i)/17 M FH (1,920 x 1,080/50i), XAVC S 4K: 25p 100 M (3,840 x 2,160/25p)/25p 60 M (3,840 x 2,160/25p), XAVC S HD:50p 50 M (1,920 x 1,080/50p)/50p 25 M (1,920 x 1,080/50p)/25p 50 M (1,920 x 1,080/25p)/25p 16 M (1,920 x 1,080/25p)/100p 100 M (1,920 x 1,080/100p)/100p 60 M (1,920 x 1,080/100p) |
HFR | Recording: NTSC/PAL Selector: [PAL] mode XAVC S HD: 50p 50M (1920x1080/250fps), 50p 50M (1920x1080/500fps), 50p 50M (1920x1080/1000fps)/25p 50M (1920x1080/250fps), 25p 50M (1920x1080/500fps), 25p 50M (1920x1080/1000fps) NTSC/PAL Selector: [NTSC] mode XAVC S HD: 60p 50 M (1,920 x 1,080/240fps), 60p 50 M (1,920 x 1,080/480fps), 60p 50 M (1,920 x 1,080/960fps) / 30p 50 M (1,920 x 1,080/240fps), 30p 50 M (1,920 x 1,080/480fps), 30p 50 M (1,920 x 1,080/960fps) / 24p 50 M (1,920 x 1,080/240fps), 24p 50 M (1,920 x 1,080/480fps), 24p 50 M (1,920 x 1,080/960fps) Sensor Readout Number of effective pixels: Quality Priority: 240fps/250fps (1,824 x 1,026), 480fps/500fps (1,824 x 616), 960fps/1,000fps (1,244 x 420) / Shoot Time Priority: 240fps/250fps (1,824 x 616), 480fps/500fps (1,292 x 436), 960fps/1,000fps (912 x 308) |
Still Image Number of recorded pixels (Image Size) during Movie | 16:9 mode: 17M (5472×3080)/7.5M (3648×2056)/4.2M (2720×1528) |
Proxy Recording | Yes (1280 x 720 [Approx. 9 Mbps]) |
Interface

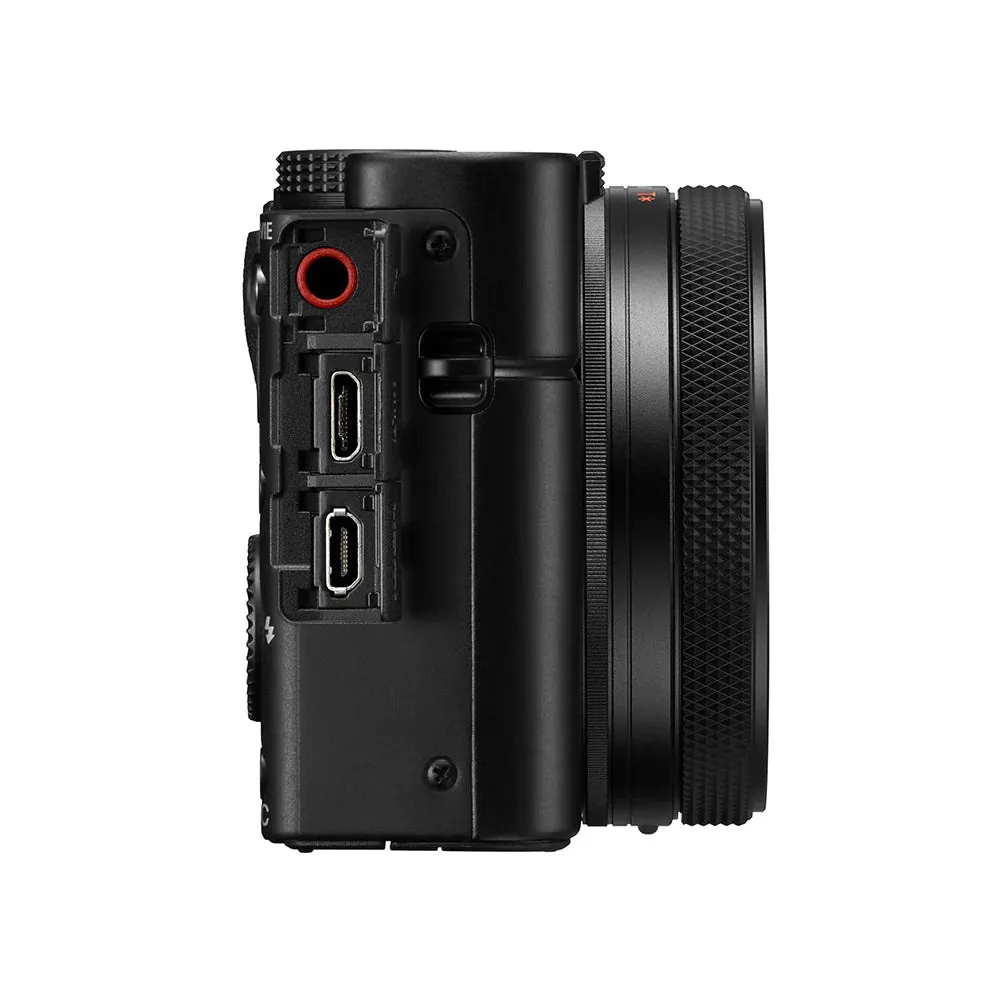

Input and output terminals | Multi/Micro USB Terminal, Hi-Speed USB (USB 2.0), Micro HDMI, Microphone jack (3.5 mm Stereo mini jack) |
NFC | NFC forum Type 3 Tag compatible, One-touch remote, One-touch sharing |
WI-FI | Yes (IEEE802.11b/g/n [2.4 GHz band]) |
Bluetooth® | Yes (Bluetooth® Standard Ver. 4.1 [2.4GHz band]) |
Power
Power Source | DC3.6 V (supplied battery) / DC5.0 V (supplied AC Adaptor) |

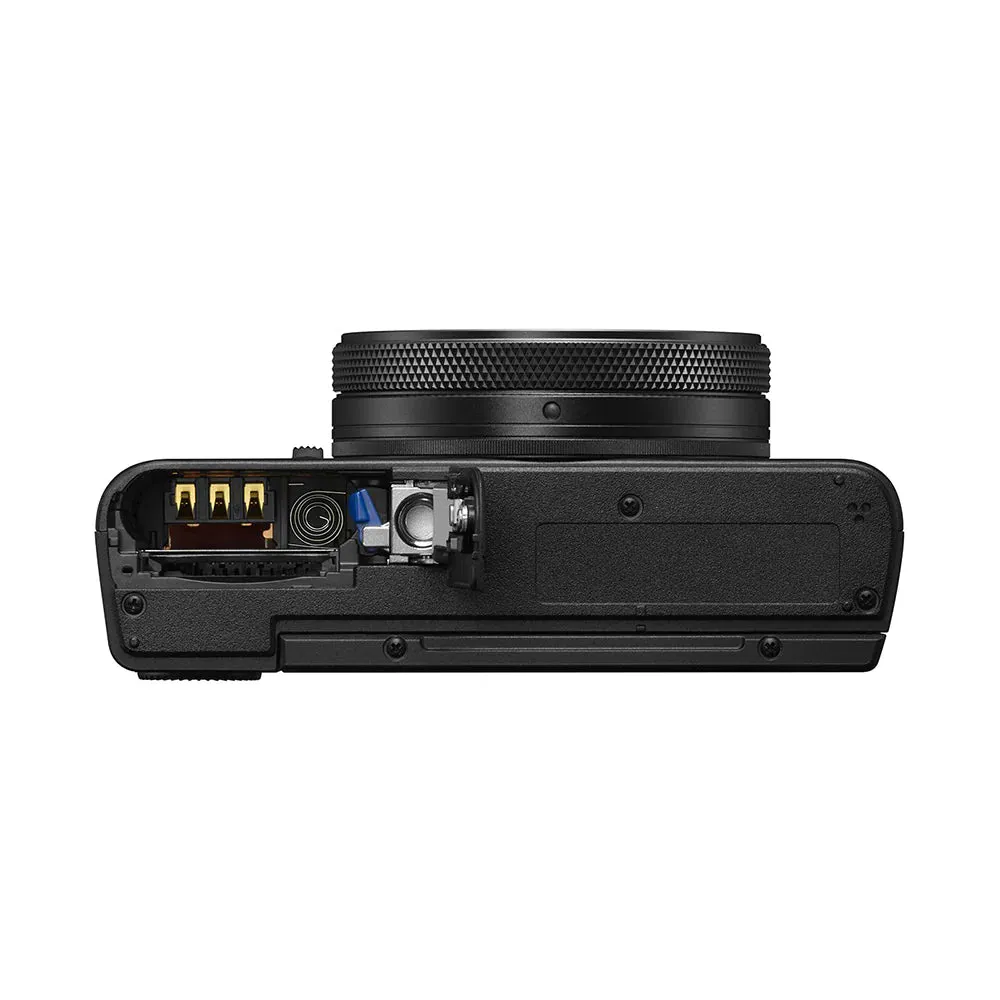

Battery System | Rechargeable battery pack (NP-BX1) |
Power Consumption (Camera Mode) | Approx. 2.1 W with LCD monitor and approx. 2.3 W with viewfinder (CIPA standard) |
USB Charge/USB Power Supply | Yes (Shooting, Playback) |
BATTERY LIFE(STILL IMAGES)(CIPA) | Monitor: Approx. 260/Approx. 130 min, Monitor (When Auto Monitor Off is set to 2 s): Approx. 310/Approx. 155 min., ViewFinder: Approx. 240/Approx. 120 min |
BATTERY LIFE(MOVIES ACTUAL SHOOTING)(CIPA) | Monitor: Approx. 40 min., ViewFinder: Approx. 40 min |
BATTERY LIFE(MOVIES CONTINUOUS SHOOTING)(CIPA) | Monitor: Approx. 70 min, ViewFinder: Approx. 70 min |
Others
Playmemories Camera Apps | - |
Shooting Functions | Face Detection, Face Registration, Still Image Recording (during movie recording), Smile shutter, Grid Line, Quick Navi, Digital Level Gauge (pitch and roll), WB Bracket, DRO Bracketing, MF Assist, Peaking (Display: Off/On) (Level: High/Mid/Low) (Colour: Red/Yellow/Blue/White), Zebra, Marker Display, Audio Rec Level, Audio Level Display, Step Zoom/Quick Zoom, Self-portrait timer, TC/UB, Copyright Info, ISO Auto Minimum Shutter Speed, PC Remote Control, Gamma Disp. Assist, [Mov] AF Tracking Sensitivity, [Mov] AF Drive Speed, Set File Name, Touch Shutter/Touch Focus/Touch Tracking, Touch Pad, My Menu, My Dial |
Playback Functions | BRAVIA Sync(Control for HDMI), 9/25-frame index view, Auto Orientation, Slide Show, Forward/Rewind (Movie), Delete, Protect, Motion Shot Video, Beauty Effect, Photo Capture, Rating, Automatic Image Rotation |
TRILUMINOS Color | Yes |
4K image output | Yes |
Operating Temprature | 0 degrees C. - 40 degrees C. / 32 degrees F. - 104 degrees F. |
Exif Print, PRINT Image Matching (PIM3) |
Size & Weight
DIMENSIONS (W X H X D) (APPROX.) | 101.6 x 58.1 x 42.8 mm (4 x 2 3/8 x 1 11/16) |
WEIGHT (CIPA COMPLIANT) | Approx. 302 g (10.7 oz) (Battery and Memory Card are included)/Approx. 275 g (9.8 oz) (Body only) |
Supplied Accessory
WHAT'S IN THE BOX | Rechargeable Battery Pack (NP-BX1), AC Adaptor, Micro USB cable, Wrist Strap, Strap Adapter, Instruction Manual |
Warranty:
2 year warranty provided by the manufacturer from date of purchase
